Spartan SIP Reed Relays
9007 Series General Purpose SIP Reed Relays
This economical, “general purpose” version of the high-performance 9001 series is designed for applications with less stringent requirements.
The SIP relay is the industry choice for a wide variety of designs where economy, performance and a compact package are needed. The 9007 Spartan Series is a general purpose economy version of the 9001 for applications with less stringent requirements. These relays are well suited for applications in Security, Instrumentation and Modems. Consult the specification tables in the parametric search tool on the General Product Page to help in selecting the appropriate relay for your application.
- High dielectric strength available, consult factory
- High speed switching compared to electromechanical relays
- Molded thermoset body on integral lead frame design
- Optional Coil Suppression Diode - protects coil drive circuits
- UL File #E67117, CSA File #028537
- RoHS compliant
Applications
- Automated Test Equipment (ATE)
- Instrumentation
- Telecommunications
- Security
Product Notes
1Consult factory for life expectancy at other switching loads. Contact resistance > 0.5Ω defines end of life.
2Optional diode is connected to pin #3(cathode) and pin #5 (anode). Correct coil polarity must be observed by connecting the positive terminal of the applied
voltage to the cathode pin.

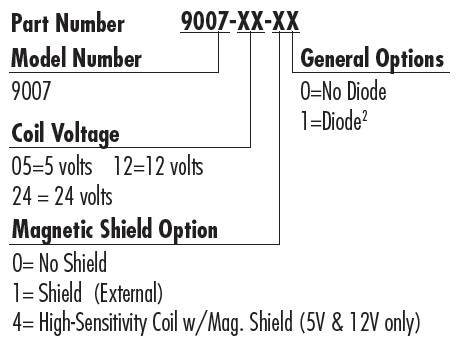

3Optional magnetic shield is available when ordered as 9007-XX-1X or 9007-XX-4X.
49007 series may be produced in either red or black compound.

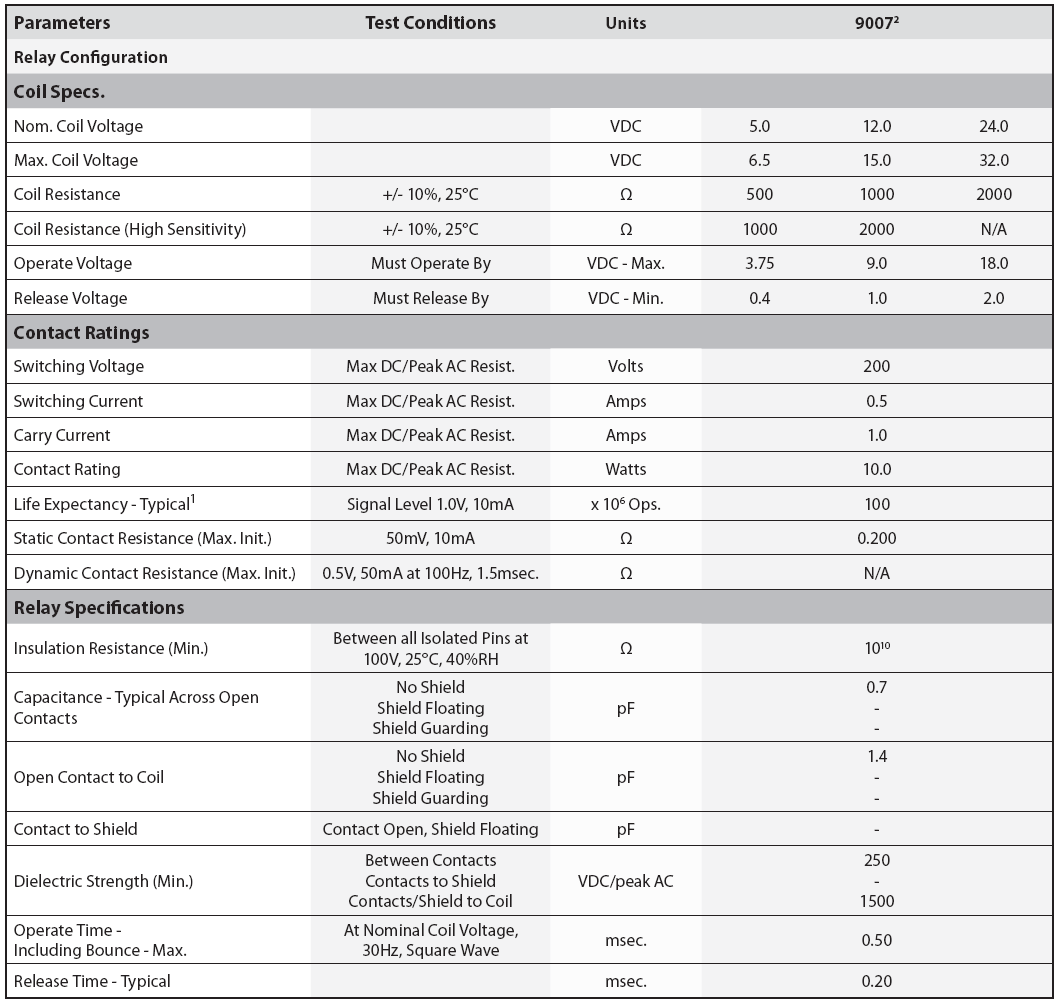

Environmental Ratings
Storage Temp: -35°C to +100°C; Operating Temp: -20°C to +85°C;
Vibration: 20 G’s to 2000 Hz; Shock: 50 G’s
All electrical parameters measured at 25°C unless otherwise specified.
