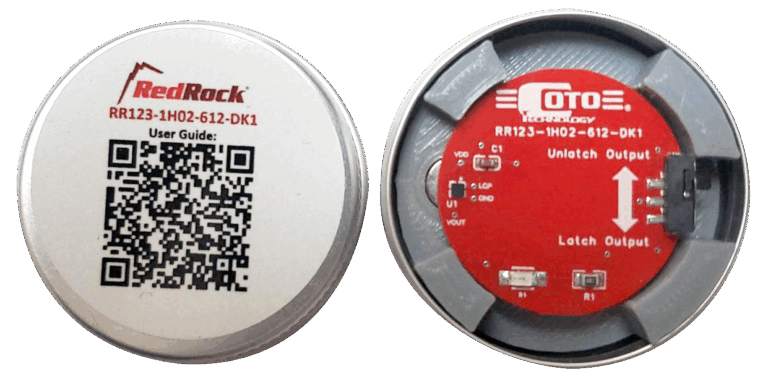

TMR Magnetic Sensors & Switches

Using proven ultra low power consumption TMR magnetic sensor technology, the high-performance RedRock® analog and digital TMR magnetic sensors have numerous technologically-advanced applications in multiple markets.

Offering the lowest power consumption, highest sensitivity, ultra-miniature package size, short lead times and a highly-competitive price, the TMR Magnetic Sensor devices are ideally suited to the demands of next generation security, metering, medical, automotive, instrumentation, and industrial markets. Target applications include fluid level detection, open-close / proximity detection, rotary sensing, tablets and laptops, “wake-up” and more. Due to their low power consumption, high sensitivity, small size and ready availability, RedRock® magnetic sensors are popular alternatives to existing Hall Effect sensors and Reed Switches.

Download the RedRock® Selector Chart Use Our Analog Parametric Product Search Use Our Digital Parametric Product Search

RR122-1A52-511 & RR122-1A53-511

Operate sensitivity of 9 G
Ultra Low Power Consumption < 1.0 µA
Wide Supply Voltage range of 1.7V – 5.5V
Omnipolar Push-Pull Response

RedRock® RR122-1B52-511 & RR122-1B53-511

Operate sensitivity of 30 G
Ultra Low Power Consumption < 1.0 μA
Wide Supply Voltage range of 1.7V – 5.5V
Omnipolar Push-Pull Response

RR122-1A22-511 / 512 & RR122-1A23-511 / 512 TMR DIGITAL PUSH-PULL MAGNETIC SENSOR

Operate sensitivity of 9 G
Ultra Low Power Consumption < 100 nA
Wide Supply Voltage range of 1.7V – 5.5V
Omnipolar Push-Pull Response

RR122-1B12-511 / 512 & RR122-1B13-511 / 512

Operate sensitivity of 30 G
Ultra Low Power Consumption < 50 nA
Wide Supply Voltage range of 1.7V – 5.5V
Omnipolar Push-Pull Response

RedRock® RR122-1B52-511 & RR122-1B53-511

Operate sensitivity of 30 G
Ultra Low Power Consumption < 1.0 μA
Wide Supply Voltage range of 1.7V – 5.5V
Omnipolar Push-Pull Response

RedRock® RR122-1E72-511 & RR122-1E73-511

Operate sensitivity of 15 G
Ultra Low Power Consumption < 11 μA
Wide Supply Voltage range of 1.7V – 5.5V
Omnipolar Push-Pull Response

RR112-1D92-532 & RR112-1D93-532

Operate Sensitivity Range from -20 G to +20 G
Low Average Current < 50 μA
Wide Supply Voltage Range of 1.7V to 5.5V
Linear Analog Voltage Response

RR112-1G42-531/532 & RR112-1G43-531/532

Operate sensitivity range: -80 G to +80 G
Ultra Low Power Consumption < 1.2 μA
Wide Supply Voltage range of 1.7V to 5.5V
Linear Analog Voltage Response

RR122-1A22-511 / 512 & RR122-1A23-511 / 512 TMR DIGITAL PUSH-PULL MAGNETIC SENSOR

Operate sensitivity of 9 G
Ultra Low Power Consumption < 100 nA
Wide Supply Voltage range of 1.7V – 5.5V
Omnipolar Push-Pull Response

RR122-1A52-511 & RR122-1A53-511

Operate sensitivity of 9 G
Ultra Low Power Consumption < 1.0 µA
Wide Supply Voltage range of 1.7V – 5.5V
Omnipolar Push-Pull Response

RR122-1B12-511 / 512 & RR122-1B13-511 / 512

Operate sensitivity of 30 G
Ultra Low Power Consumption < 50 nA
Wide Supply Voltage range of 1.7V – 5.5V
Omnipolar Push-Pull Response

RR122-1B92-511/512 & RR122-1B93-511/512

Operate sensitivity of 30 G
Ultra Low Power Consumption < 32 μA
Wide Supply Voltage range of 1.7V – 5.5V
Omnipolar Push-Pull Response

RR122-1F22-511 & RR122-1F23-511

Operate sensitivity of 70 G
Ultra Low Power Consumption < 100 nA
Wide Supply Voltage range of 1.7V – 5.5V
Omnipolar Push-Pull Response

RR122-2B22-511 & RR122-2B23-511

Operate sensitivity of 30 G
Ultra Low Power Consumption < 100 nA
Wide Supply Voltage range of 1.7V – 5.5V
Unipolar Push-Pull Response

RR122-2E22-511 & RR122-2E23-511

Operate sensitivity of 15 G
Ultra Low Power Consumption of 100 nA
Wide Supply Voltage range of 1.7V – 5.5V
Unipolar Push-Pull Response

RR122-2E32-511 & RR122-2E33-511

Operate sensitivity of 15 G
Ultra Low Power Consumption of 145 nA
Wide Supply Voltage range of 1.7V – 5.5V
Unipolar Push-Pull Response

RR122-3C62-511 & 122-3C63-511

Operate sensitivity of 10 G
Ultra Low Power Consumption < 1.7 μA
Wide Supply Voltage Range of 1.7V - 5.5V
Bipolar Latching Push-Pull Response

RR122-3C72-511 / 512 & RR122-3C72-511 / 512

Operate sensitivity of 10 G
Ultra Low Power Consumption < 11 μA
Wide Supply Voltage Ranges Available Down to 1.7V, Up to 5.5V
Bipolar Latching Push-Pull Response

RR122-3CU2-515 & RR122-3CU3-515

Turbo Mode Pin to Enable 10 kHz Operation for Fast Response when Required
Operate sensitivity from -10 G to +10 G
Ultra Low Power Consumption < 600 nA
Bipolar Latching Push-Pull Response

RR132-1B12-551/552 & RR132-1B13-551/552

Operate sensitivity of 30 G
Ultra Low Power Consumption < 50 nA
Wide Supply Voltage range of 1.7V – 5.5V
Omnipolar Open-Drain Response

RR132-2E22-551 & RR132-2E23-551

Operate sensitivity of 15 G
Ultra Low Power Consumption of 100 nA
Wide Supply Voltage range of 1.7V – 5.5V
Unipolar Open-Drain Response

RR132-2E32-551 & RR132-2E33-551

Operate sensitivity of 15 G
Ultra Low Power Consumption < 90 nA
Wide Supply Voltage range of 1.7V – 5.5V
Unipolar Open-Drain Response

RR142-1LD2-542/545 & RR142-1LD3-542/545

Multi channel Outputs: Digital & Analog
Operate sensitivity of 60 G
Linear Analog Sensitivity Range from -80 G to +80 G
Wide Supply Voltage range of 1.7V – 5.5V
Lowest Average Current: 150 nA (Digital only mode), 1.2 μA (Digital+Analog mode)
Omnipolar Response for the Digital Channel with Push-Pull Output
Linear Analog Voltage Response for the Analog Channel

RedRock® TMR Magnetic Sensor Selector Guide

Next-Generation Medical Devices Using TMR

Replacing Hall Sensors with TMR Sensors

Options for Activation of Battery Powered Medical Devices

From Hall Effect to Tunneling Magnetoresistance (TMR)

Using TMR Magnetic Sensors In Wildlife Tracking Devices

Pairing TMR Sensor & Magnet for Cost Savings

Importance of Magnet Protection in Harsh Environments

Modernizing Security Systems with TMR Sensors

Magnetic Sensing for Open & Anti-Tamper Detection

Driving High Current with Magnetic Sensors

Powering ON your Battery-Operated Medical or IoT Device

Overcoming Battery Anxiety Using Active Magnetic Sensors

PARAMETRIC SEARCH: REDROCK® ANALOG / LINEAR TMR MAGNETIC SENSORS

Magnetic Output Response(s):

Magnetic Sensitivity:

Analog Magnetic Sensing Range (G):

Frequency (Hz):

IAVG (µA):

Temp Rating (ºC):

Supply Voltage (VDD):

Package:

wdt_ID	wdt_created_by	wdt_created_at	wdt_last_edited_by	wdt_last_edited_at	Coto Part Number	Magnetic Output Response(s)	Magnetic Sensitivity	Analog Magnetic Sensing Range (G)	Frequency (Hz)	IAVG (µA)	Temp Rating (ºC)	Supply Voltage (VDD)	Output Response	Package	Axis of Sensitivity
1	revsparkadmin	16/03/2024 06:57 PM	randallMorrison928	07/05/2024 02:54 PM	RR112-1D92-532	Linear Analog	-20 mV/V/G	-20 to 20	10,000	50.0	-40 to +85	1.7 to 5.5	Analog Voltage	LGA-4	X-Axis
2	revsparkadmin	16/03/2024 06:57 PM	randallMorrison928	07/05/2024 02:54 PM	RR112-1D93-532	Linear Analog	-20 mV/V/G	-20 to 20	10,000	50.0	-40 to +125	1.7 to 5.5	Analog Voltage	LGA-4	X-Axis
3	revsparkadmin	16/03/2024 06:57 PM	randallMorrison928	07/05/2024 02:54 PM	RR112-1G42-531	Linear Analog	-5 mV/V/G	-80 to 80	100	1.5	-40 to +85	1.7 to 5.5	Analog Voltage	SOT-23-3	X-Axis
4	revsparkadmin	16/03/2024 06:57 PM	randallMorrison928	07/05/2024 02:54 PM	RR112-1G42-532	Linear Analog	-5 mV/V/G	-80 to 80	100	1.5	-40 to +125	1.7 to 5.5	Analog Voltage	LGA-4	X-Axis
5	revsparkadmin	16/03/2024 06:57 PM	randallMorrison928	07/05/2024 02:54 PM	RR112-1G43-531	Linear Analog	-5 mV/V/G	-80 to 80	100	1.5	-40 to +125	1.7 to 5.5	Analog Voltage	SOT-23-3	X-Axis
6	revsparkadmin	16/03/2024 06:57 PM	randallMorrison928	07/05/2024 02:55 PM	RR112-1G43-532	Linear Analog	-5 mV/V/G	-80 to 80	100	1.5	-40 to +85	1.7 to 5.5	Analog Voltage	LGA-4	X-Axis
7	randallMorrison928	07/05/2024 11:48 AM	randallMorrison928	14/05/2024 09:51 AM	RR142-1LD2-542*	Digital + Wake-able Analog Channels	Analog: -5mV/V/G; Digital: 60G Op / 40G Rel	-80 to +80	100	1.5	-40 to +85	1.7 to 5.5		LGA-4
8	randallMorrison928	07/05/2024 02:58 PM	randallMorrison928	14/05/2024 09:51 AM	RR142-1LD2-545*	Digital + Wake-able Analog Channels	Analog: -5mV/V/G; Digital: 60G Op / 40G Rel	-80 to +80	100	1.5	-40 to +85	1.7 to 5.5		SOT-23-5
9	randallMorrison928	07/05/2024 03:00 PM	randallMorrison928	14/05/2024 09:52 AM	RR142-1LD3-542*	Digital + Wake-able Analog Channels	Analog: -5mV/V/G; Digital: 60G Op / 40G Rel	-80 to +80	100	1.5	-40 to +125	1.7 to 5.5		LGA-4
10	randallMorrison928	07/05/2024 03:02 PM	randallMorrison928	14/05/2024 09:52 AM	RR142-1LD3-545*	Digital + Wake-able Analog Channels	Analog: -5mV/V/G; Digital: 60G Op / 40G Rel	-80 to +80	100	1.5	-40 to +125	1.7 to 5.5		SOT-23-5
						Magnetic Output Response(s)	Magnetic Sensitivity	Analog Magnetic Sensing Range (G)	Frequency (Hz)	IAVG (µA)	Temp Rating (ºC)	Supply Voltage (VDD)		Package

Note: The axis of sensitivity of Coto’s RedRock® TMR sensors is along the X-axis. Coto’s digital RedRock® TMR sensors have an active low response. (See datasheet for details.)
* The RR142 Product Series features multi-channel outputs: Digital & Analog

PARAMETRIC SEARCH: REDROCK® DIGITAL TMR MAGNETIC SENSORS

Part Number:

Magnetic Polarity Response:

Operative Sensitivity(G):

Release Sensitivity(G):

Frequency(Hz):

IAVG(µA):

Temp Rating (ºC):

Supply Voltage(VDD):

Package:

Part Number	Magnetic Polarity Response	Operative Sensitivity(G)	Release Sensitivity(G)	Frequency(Hz)	IAVG(µA)	Temp Rating (ºC)	Supply Voltage(VDD)	Output Response	Package	Axis of Sensitivity
RR122-1A22-511	Omnipolar Push-Pull	9	5	10	0.14	-40 to +85	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-1A23-511	Omnipolar Push-Pull	9	5	10	0.14	-40 to +125	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-1A23-512	Omnipolar Push-Pull	9	5	10	0.14	-40 to +125	1.7 to 5.5	Active Low	LGA-4	X-Axis
RR122-1B12-511	Omnipolar Push-Pull	30	20	2	0.07	-40 to +85	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-1B12-512	Omnipolar Push-Pull	30	20	2	0.07	-40 to +85	1.7 to 5.5	Active Low	LGA-4	X-Axis
RR122-1B13-511	Omnipolar Push-Pull	30	20	2	0.07	-40 to +125	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-1B13-512	Omnipolar Push-Pull	30	20	2	0.07	-40 to +125	1.7 to 5.5	Active Low	LGA-4	X-Axis
RR122-1B52-511	Omnipolar Push-Pull	30	20	250	1.30	-40 to +85	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-1B53-511	Omnipolar Push-Pull	30	20	250	1.30	-40 to +125	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-1E72-511	Omnipolar Push-Pull	15	10	2,500	12.00	-40 to +85	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-1E73-511	Omnipolar Push-Pull	15	10	2,500	12.00	-40 to +125	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-3C72-511	Bipolar Push-Pull	-10	10	2,500	11.00	-40 to +85	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-3C72-512	Bipolar Push-Pull	-10	10	2,500	11.00	-40 to +85	1.7 to 5.5	Active Low	LGA-4	X-Axis
RR122-3C73-511	Bipolar Push-Pull	-10	10	2,500	11.00	-40 to +125	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-3C73-512	Bipolar Push-Pull	-10	10	2,500	11.00	-40 to +125	1.7 to 5.5	Active Low	LGA-4	X-Axis
RR122-3C62-511	Bipolar Push-Pull	-10	10	500	1.90	-40 to +85	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-3C63-511	Bipolar Push-Pull	-10	10	500	1.90	-40 to +125	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR132-1B12-551	Omnipolar Open-Drain	30	20	2	0.07	-40 to +85	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR132-1B12-552	Omnipolar Open-Drain	30	20	2	0.07	-40 to +85	1.7 to 5.5	Active Low	LGA-4	X-Axis
RR132-1B13-551	Omnipolar Open-Drain	30	20	2	0.07	-40 to +125	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR132-1B13-552	Omnipolar Open-Drain	30	20	2	0.07	-40 to +125	1.7 to 5.5	Active Low	LGA-4	X-Axis
RR132-2E32-551	Unipolar Open-Drain	15	10	20	0.20	-40 to +85	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR132-2E33-551	Unipolar Open-Drain	15	10	20	0.20	-40 to +125	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-1F22-511	Omnipolar Push-Pull	70	50	10	0.14	-40 to +85	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-1F23-511	Omnipolar Push-Pull	70	50	10	0.14	-40 to +125	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-1A52-511	Omnipolar Push-Pull	9	5	250	1.30	-40 to +85	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-1A53-511	Omnipolar Push-Pull	9	5	250	1.30	-40 to +125	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-1B92-511	Omnipolar Push-Pull	30	20	10,000	36.00	-40 to +85	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-1B92-512	Omnipolar Push-Pull	30	20	10,000	36.00	-40 to +85	1.7 to 5.5	Active Low	LGA-4	X-Axis
RR122-1B93-511	Omnipolar Push-Pull	30	20	10,000	36.00	-40 to +125	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-1B93-512	Omnipolar Push-Pull	30	20	10,000	36.00	-40 to +125	1.7 to 5.5	Active Low	LGA-4	X-Axis
RR122-2B22-511	Unipolar Push-Pull	30	20	10	0.14	-40 to +85	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-2B23-511	Unipolar Push-Pull	30	20	10	0.14	-40 to +125	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-2E22-511	Unipolar Push-Pull	15	10	10	0.14	-40 to +85	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-2E23-511	Unipolar Push-Pull	15	10	10	0.14	-40 to +125	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR132-2E22-551	Unipolar Open-Drain	15	10	10	0.14	-40 to +85	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR132-2E23-551	Unipolar Open-Drain	15	10	10	0.14	-40 to +125	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-2E33-511	Unipolar Push-Pull	15	10	20	0.20	-40 to +125	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-2E32-511	Unipolar Push-Pull	15	10	20	0.20	-40 to +85	1.7 to 5.5	Active Low	SOT-23-3	X-Axis
RR122-3CU2-515*	Bipolar Push-Pull	10	-10	10,000	0.80	-40 to +85	1.7 to 5.5	Active Low	SOT-23-5	X-Axis
RR122-3CU3-515*	Bipolar Push-Pull	10	-10	10,000	0.80	-40 to +125	1.7 to 5.5	Active Low	SOT-23-5	X-Axis
RR122-1A22-512	Omnipolar Push-Pull	9	5	10	0.14	-40 to +125	1.7 to 5.5	Active Low	LGA-4	X-Axis
Part Number	Magnetic Polarity Response	Operative Sensitivity(G)	Release Sensitivity(G)	Frequency(Hz)	IAVG(µA)	Temp Rating (ºC)	Supply Voltage(VDD)		Package

Note: The axis of sensitivity of Coto’s RedRock® TMR sensors is along the X-axis. Coto’s digital RedRock® TMR sensors have an active low response. (See datasheet for details.)
* Product Series RR122-3CU2-515 and RR122-3CU3-515 have a turbo mode pin to enable 10 kHz Operation for fast response when required.
