High Power Miniature SIP Reed Relays
9094 20W MiniSIP Reed Relays
The 9094 Series is the high power 20W version of Coto Technology’s industry standard 9091 MiniSIP relay. The robust contacts and small size of the 9094 series make it ideal for ATE and other high-reliability test and measurement applications where high board density and long life are key requirements.
- 9094 is a 20W SIP relay measuring .615” x .150” x .275”
- 40% less board space (LxW) than the 9001 series
- Optional coil suppression diode protects coil drive circuits
- High insulation resistance, 1012Ω minimum
- Molded thermoset body on integral lead frame design
- High reliability, hermetically sealed contacts for long life
- High-speed switching compared to electromechanical relays
- RoHS compliant
Applications
- Automatic Test Equipment
- Instrumentation
- Telecommunications

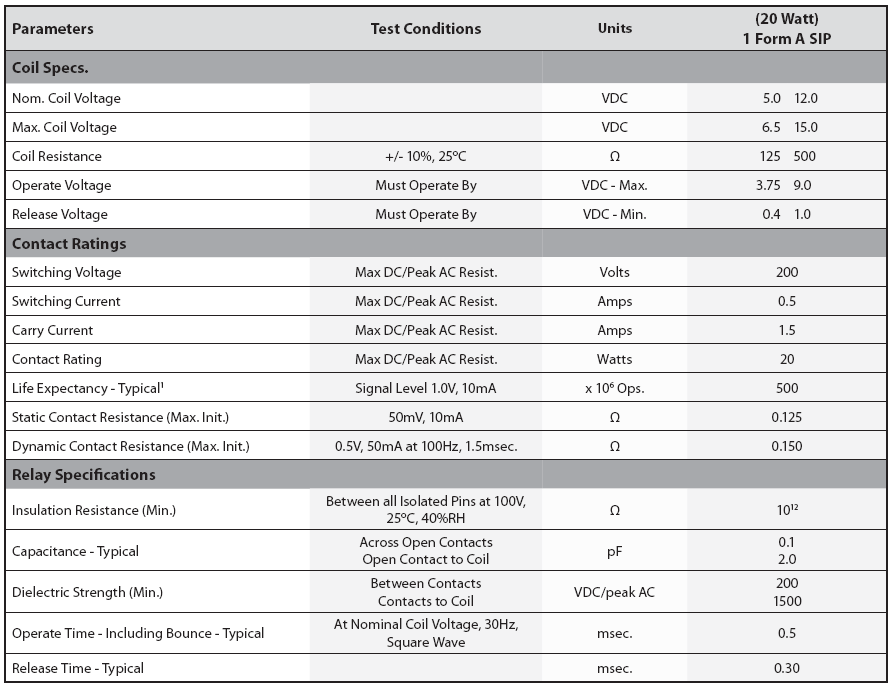

Product Notes
1Consult factory for life expectancy at other switching loads. Resistance >0.5Ω defines end of life or failure to open.
2Optional diode is connected to pin #2 (cathode) and pin #3(anode). Correct coil polarity must be observed by connecting the positive terminal of the applied voltage to the cathode pin.
Environmental Ratings
Storage Temp: -35°C to +100°C; Operating Temp: -20°C to +85°C
All electrical parameters measured at 25°C unless otherwise specified.
Vibration: 20 G’s to 2000 Hz; Shock: 50 G’s
