High Voltage Reed Relays
9105 Series High Voltage SMD & DIP Reed Relays
The 9105 series is a high-reliability, high-voltage reed relay, 100% tested, available in both SMD and through-hole configurations, ideal for HV ATE applications and insulation in HV systems.
The 9105 series is a high-voltage reed relay available in both SMD and through-hole packages (DIP). It is capable of switching up to 1 kV, with a breaking voltage of up to 4.25 kV and dielectric strength voltages of 7 kV. This molded relay features a robust design manufactured under Coto’s higher quality standards, including an added diode for coil protection. It undergoes 100% testing, which includes high-voltage testing between all isolated points.
- High voltage switching up to 1000 V
- High dielectric strength up to 7000 V
- High Insulation Resistance – 1012
- High reliability, hermetically sealed contacts for long life
- High speed switching compared to electromechanical relays
- Molded thermoset body on integral lead frame design
- Optional Coil Suppression Diode – protects coil drive circuits
- RoHS Certified
- In compliance with IEC 60664-1 standard
- Gold plated terminals
Applications
- Battery Management Systems
- Solar Systems
- EV/Automotive
- Automated Test Equipment (ATE)
- Medical
- Instrumentation
- Process Control
- Telecommunications

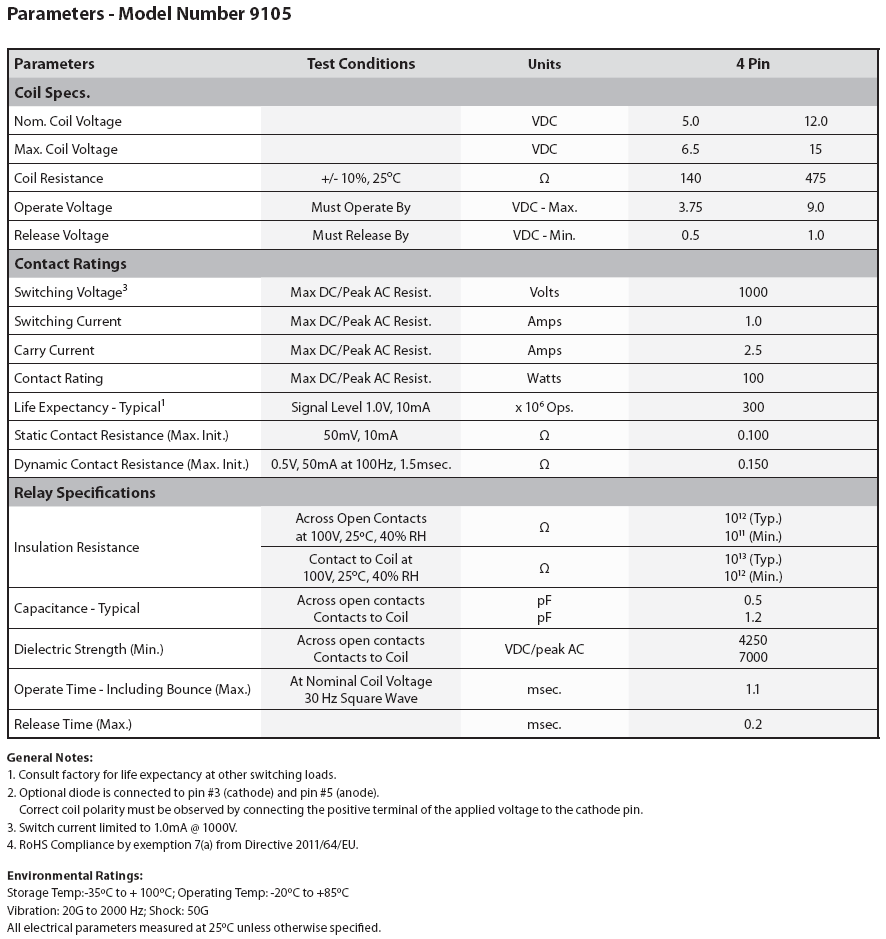

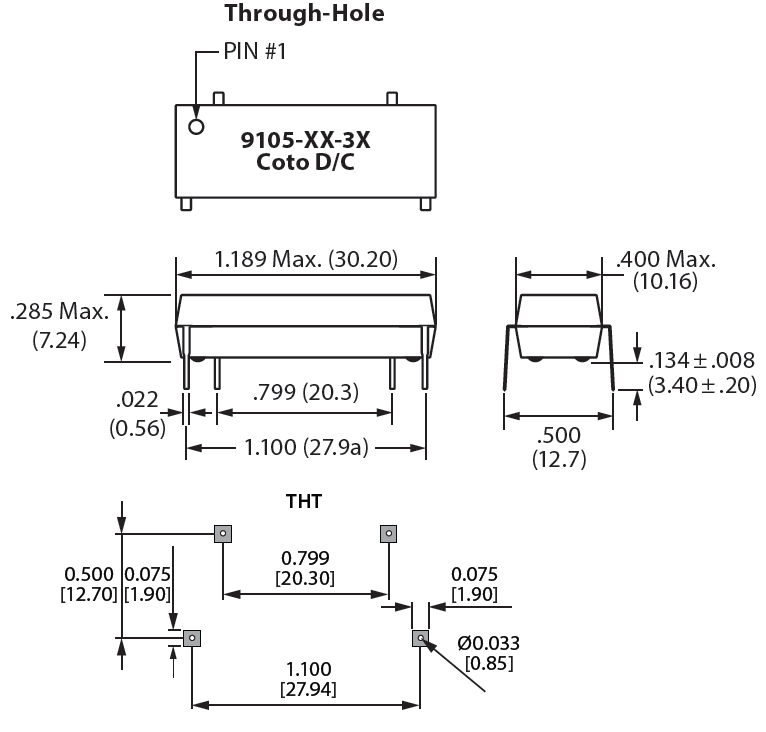

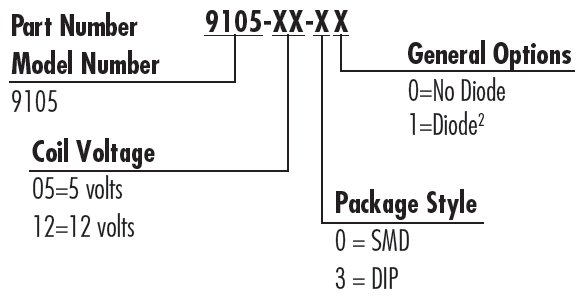

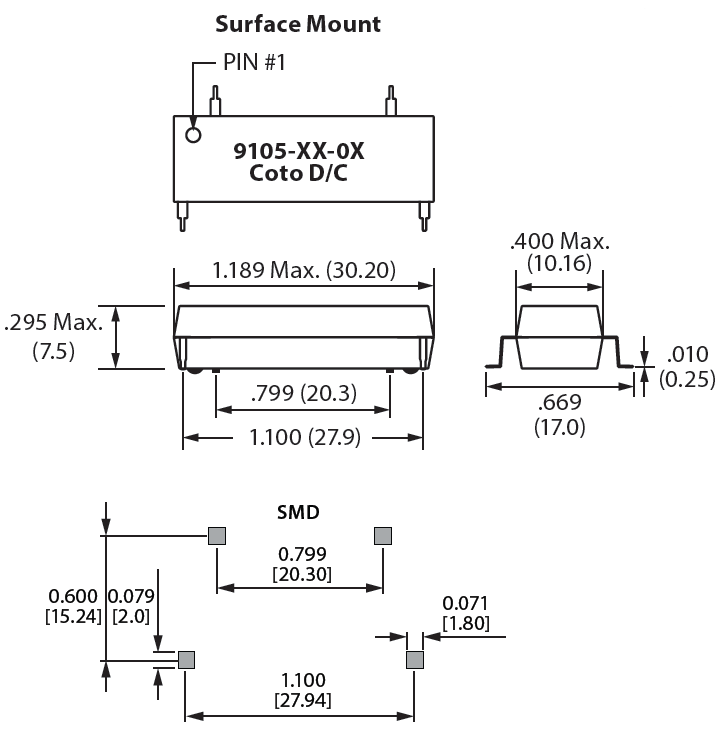

Product Schematics
