CotoMOS® C220S High Voltage (1200V) MOSFET Relay
The C220S Series enables high-voltage switching up to 1,200V in Coto’s smallest MOSFET relay package, helping designers maximize channel density while minimizing board space.
The C220S Series, featuring Coto’s smallest high-voltage MOSFET relay package, delivers high-voltage performance in a compact design. Capable of switching up to 1,200V and 120mA with a low ON resistance of 20Ω (typical) and 1,500V input-to-output isolation, the C220S is engineered for applications with critical space constraints and high-density requirements. Its compact design makes it a reliable, space-efficient solution for Automatic Test Equipment (ATE), industrial controls, and measurement & instrumentation systems.

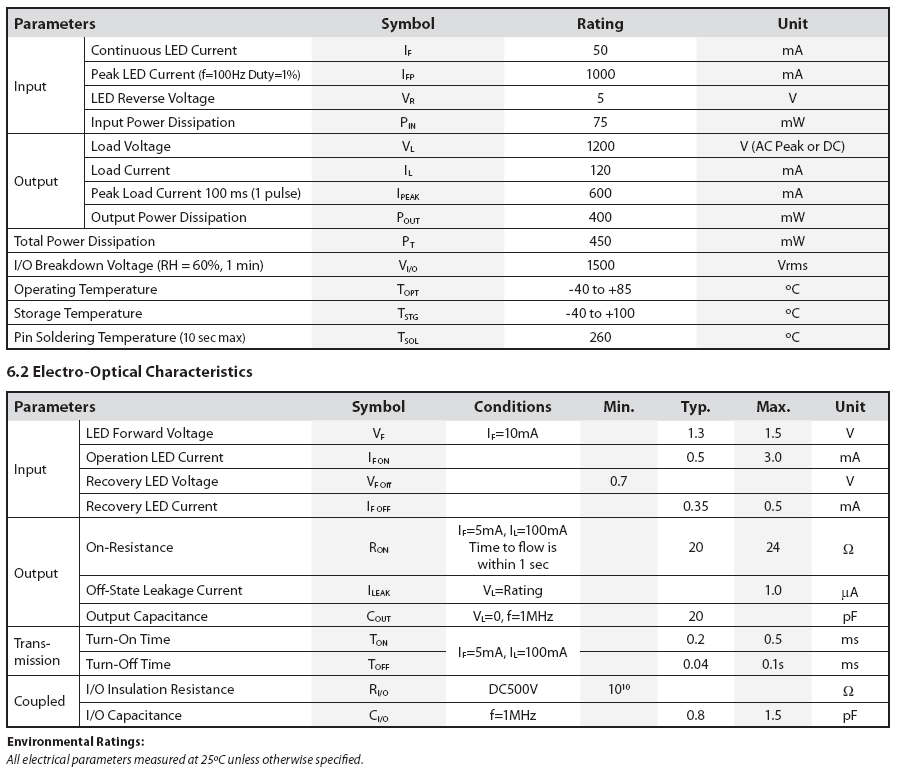

- Contact Form: 1A
- Load Voltage: 1200V
- Load Current: 120mA
- Low On-Resistance: 20pF Typical
- Low Off-state Leakage Current: 1.0uA Maximum
- Input/Output Isolation: 1500Vrms
- Compact, SOP-4 package Design
- Arc-Free with no Snubbing Circuits
- High-Reliability Solid State Design
- RoHS Compliant
Applications
- Automatic Test Equipment (ATE)
- Industrial Controls
- Instrumentation
- Measurement Equipment
Product Schematics
