Encapsulated Molded Reed Switch
CT04 Series Encapsulated (Molded) Reed Switch
The CT04 is the smallest molded reed option available. This overmolded, surface-mount device is available in gull wing or J-lead configurations.
The CT04 is an overmolded, mini dry reed switch – the smallest molded reed switch option in the market. It is a single-pole, singlethrow (SPST) type, having normally open ruthenium contacts.
The sensor is a double-ended type and may be actuated with an electromagnet, a permanent magnet, or a combination of both.

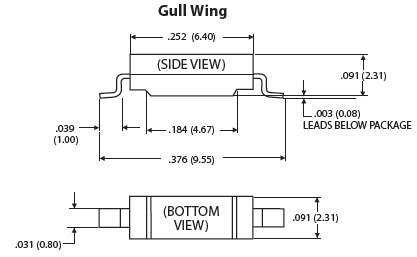

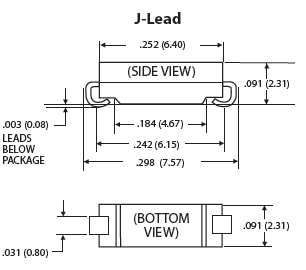

The device is designed for SMD mounting and is available in Gull Wing or J-bend lead configurations.
- High reliability, hermetically sealed contacts for long life - tested up to 1 billion operations
- Ideal for SMD pick and place
- Tape and reel packaging
- Rugged encapsulation
- UL File #E67117 - Contact factory for details
- RoHS Compliant
Applications
- Proximity Sensing
- Medical Applications
- Hearing Aids
- Pulse Counter
